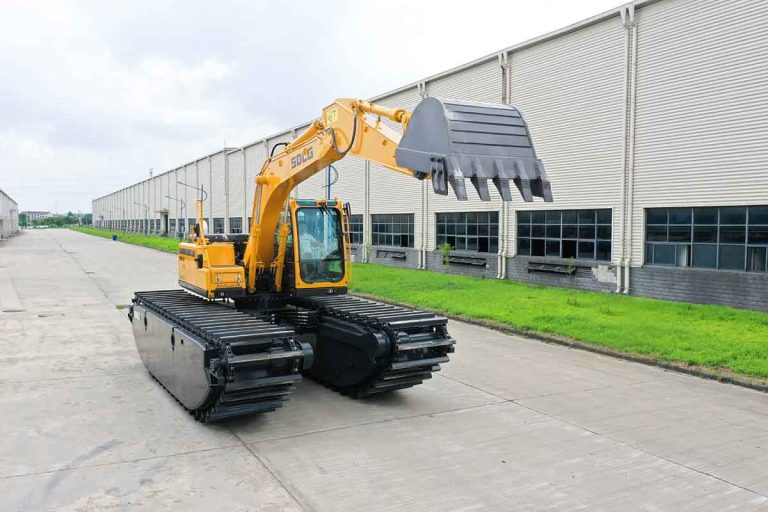

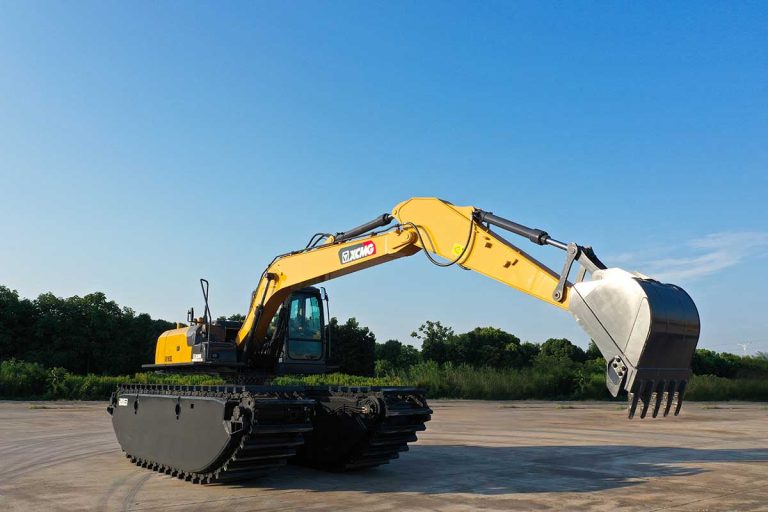

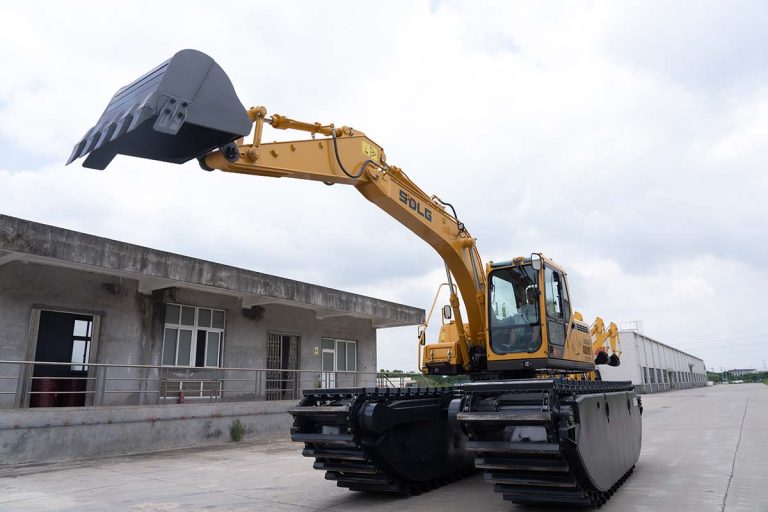

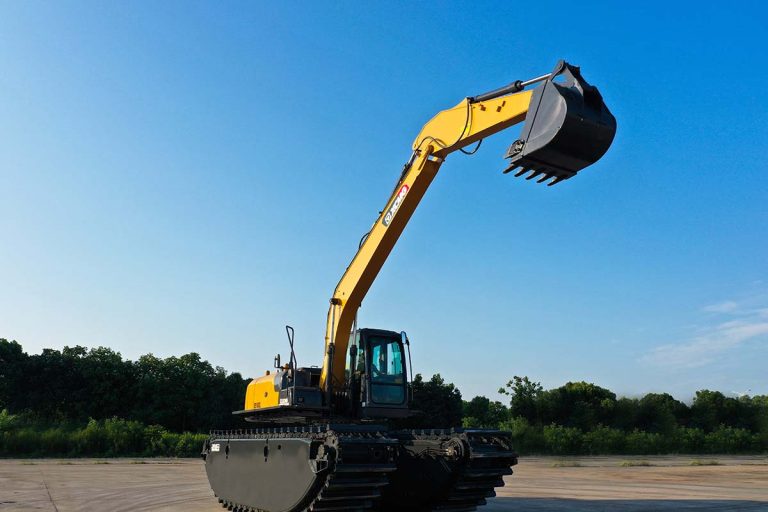

River 150 | 10-15 Ton Amphibious Excavator

River 150 | 10-15 Ton Amphibious Excavator

10-15 ton amphibious excavator is equipped with pontoons or specially designed tracks that allow it to operate on water and soft, marshy terrain, in addition to standard land surfaces. The 10-15 ton classification refers to its operational weight, making it suitable for medium to heavy-duty tasks such as dredging, land reclamation, and construction in wetlands. Its design ensures stability and mobility in challenging conditions, offering a balance between power and maneuverability. The RS150-A pontoons are designed specifically for 12-15 ton excavators, offering a versatile undercarriage that extends from 2.8 to 4.4 meters in width. This innovative design enhances the excavator’s ability to operate efficiently in both narrow and wide environments, reducing construction costs and simplifying transportation on width-restricted roads. Additionally, it minimizes the need for disassembly and reassembly, making it a convenient choice for dynamic work sites.

Specification Introduction

River150 Parameter Unit
a) Overall machine length 10040 mm
b) Overall machine width without side pontoons 3810 mm
c) Overall machine height(to boom) 3710 mm
d) Turntable width 2490 mm
e) Single pontoon length 6880 mm
g) Track shoe width 1020 mm
m) Single pontoon height 1590 mm
f) Pontoon overall width 3810 mm
i) Track gauge 2560 mm
h) Distance between sprocket and idler 6110 mm
j) Counterweight ground clearance 1740 mm
k) Min ground clearance 1060 mm
l) Max turning radius of the tail 2824 mm

River150 Parameter Unit
L1) Max digging radius 9840 mm
L2) Max digging height 10990 mm
L3) Max digging depth 5890 mm
L4) Max unloading height 8525 mm
L7) Min turning radius 2970 mm
River150 Parameter Unit
Pontoon Model RV150-3 /
Operating weight 21500 Kg
Boom and stick length 8621  mm
Bucket capacity 0.6  m³
Engine model CumminsQSF3.8 /
Rated power/speed 86/2200 Kw/rpm
Max torque/speed 470/1300 Nm/rpm
Displacement 3.8 L
Motor model TM22 Mottrol(Doosan)
Output torque 2616 N.m(kgf.m)
Continuous pressure 350 MPa(kgf/cm2)
Driving speed 2.9 km/h
Swing speed 11 r/min
Gradeability 《30° °
Ground specific pressure 22.8 kPa
Bucket digging force 77 kN
Stick digging force 48.8 kN
Fuel tank volume 760 L
Hydraulic oil tank volume 105 L
Engine oil capacity 11 L
